ControlPro v3.4

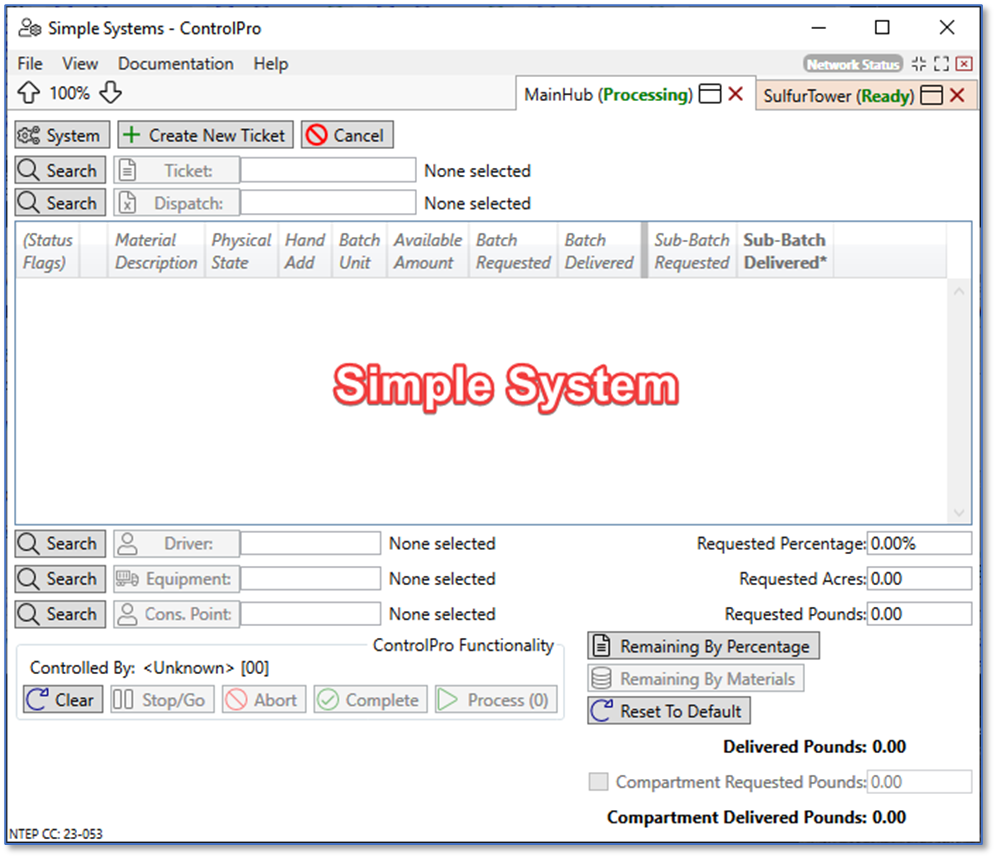

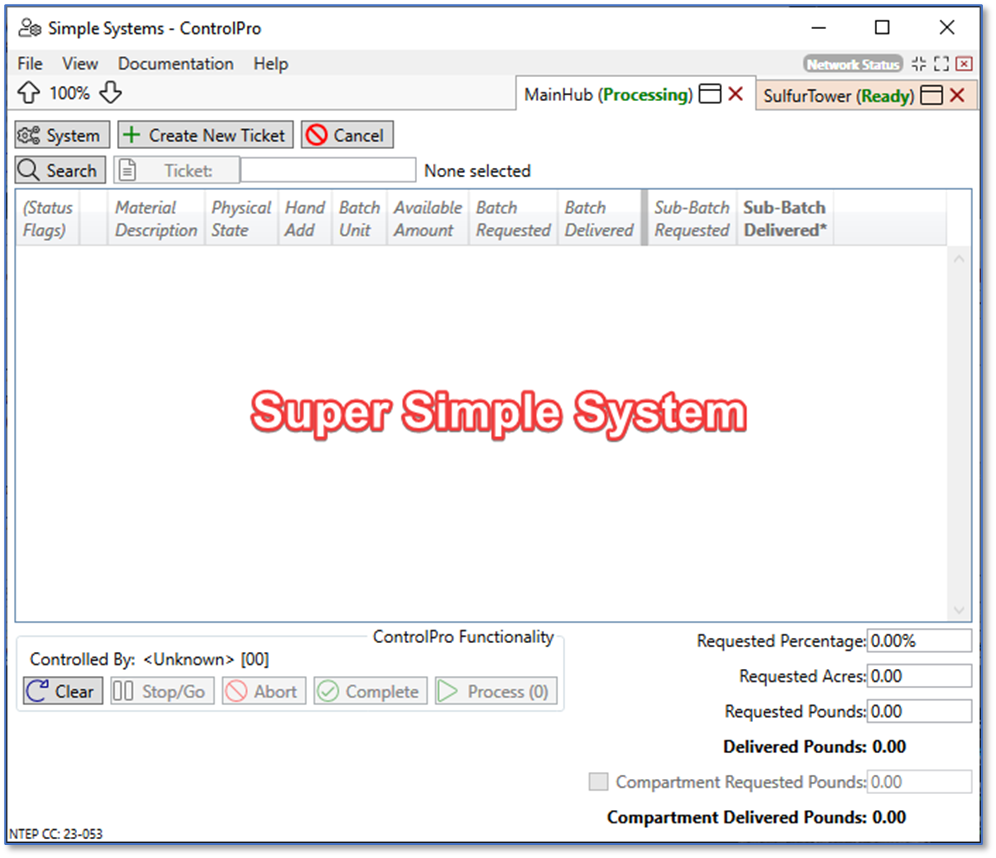

The Simple Systems screen is an alternative screen for processing tickets. It has a more simplified interface which allows you to enter all the information on one screen. There are two versions of this screen. Simple Systems, and Super Simple Systems. The screenshots below show you the differences between the two, and how this can be configured.
Under the Settings > Local > General tab, you’ll see a checkbox for super simple systems. Activating this will use “super” simple system, and unchecking with activate the normal simple system.
For both simple system types, the systems setup in ControlPro appear as a tab up at the top. You can drag and drop the tabs to change their order. You can increase the size of the text using the zoom feature with arrows at the top left of the screen. Use the new button to create new tickets, or search to open tickets. Clicking the system button will take you to the normal system screen, and clicking the cancel button will clear any open tickets.

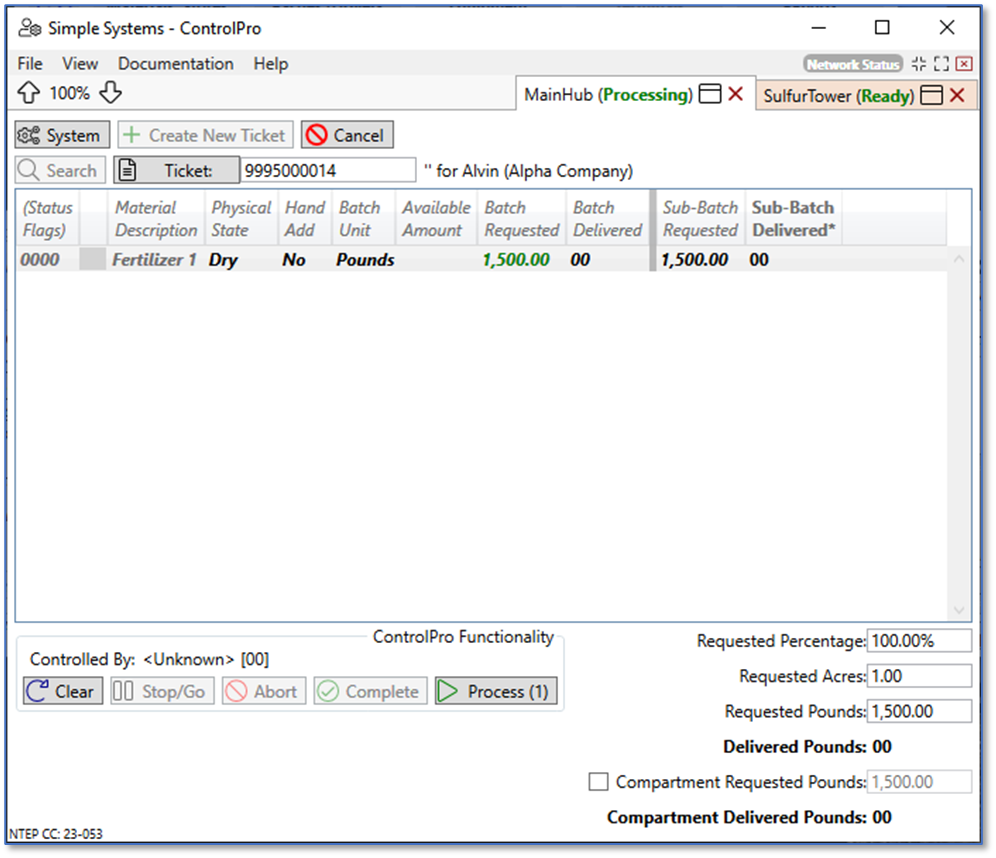

For the normal simple system, there are more options at the bottom of the screen. You can add a driver or equipment and adjust the batch size. The remaining button will apply the remaining load amount of the ticket selected, either based on blending ratio, or the remaining materials on the ticket. Below is an example of what processing a ticket looks like when in simple systems.
